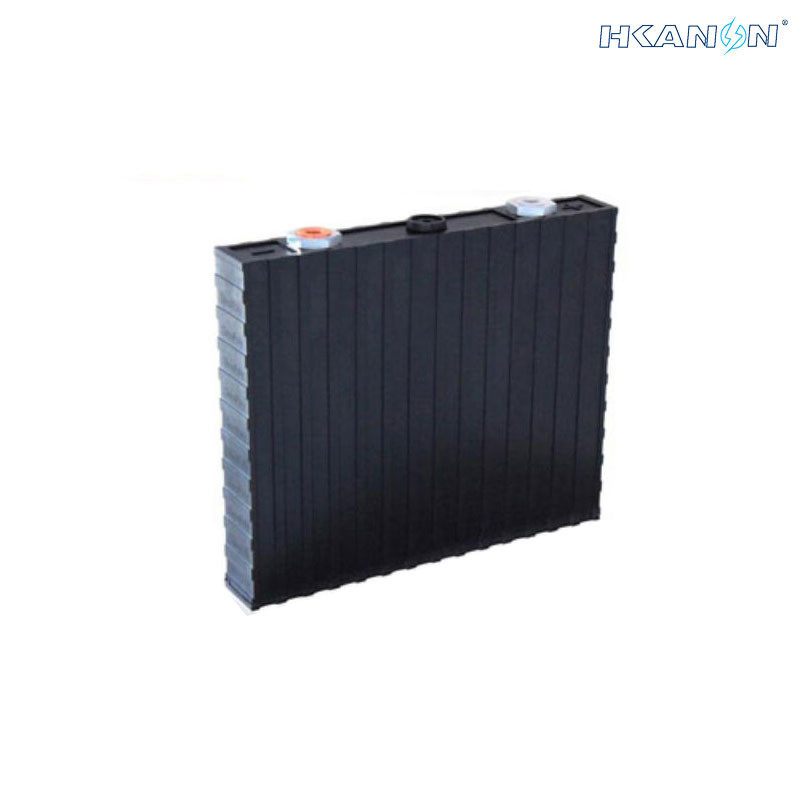

LFP Prismat Phosphate Lithium Ion Battery 3.2V 400Ah LiFePO4 Batteri Cell

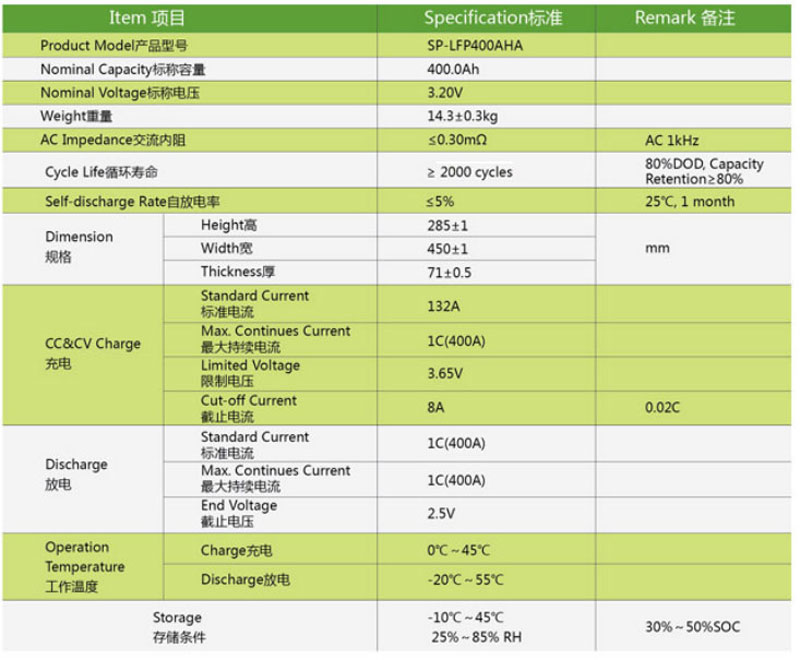

| Specifications |
| Model | SP-LFP400AHA |
| Manufacturer | Sinopoly |
| Nominal capacity | 400Ah |
| Nominal voltage | 3.2V |
| operational voltage | 2,8 - 3,65 V |
| The maximum charging voltage for initial charge | 3,7 V. |
| Recommended subsequent charging | 3.65V |
| The minimum voltage | 2.65V |
| Maximum discharge current | 1C continously. |
| Operating temperature | -20°C up to 55°C (discharging) 0°C up to 55°C(charging) |
| Size | 285*400*71(+/-1)mm |
| Weight | 14.5kgs |
Other products
| Nominal Capacity | Nominal Voltage | Dimension (H*W*T) | Weight | Max Continuous Discharge Current |
| 100Ah | 3.2V | 221*142*61 (+/-1) mm | 3.15+/-0.1kg | 3C (300A) |
| 200Ah | 3.2V | 280*180*69 (+/-1) mm | 5.8+/-0.2kg | 3C(600A) |
| 300Ah | 3.2V | 308*360*53 (+/-1) mm | 9.5+/-0.3kg | 1C(300A) |
| 400Ah | 3.2V | 285*400*71(+/-1)mm | 14.3+/-0.3kg | 1C(400A) |
| Cycle Life: > 2000 times @ 80% DOD, retention capacity ≥ 80% |
Pictures
Lithium batteries can be used on many traffic tools:
(1) Energy storage equipment: energy storage equipment based on solar energy, wind energy, geothermal energy, ocean energy power generation system; peak shaving of power grid; UPS of uninterruptible power system; use of solar energy battery as energy storage equipment (BYD is already producing such batteries) Lighting, etc.
(2) Power tools High-power power tools (wireless); electric hammers, electric drills, weeders, etc.;
(3) Light electric vehicle electric motor vehicles, electric bicycles, recreational vehicles, golf carts, electric pushers, cleaning vehicles; hybrid electric vehicles (HEV), the latest 2-3 years of goals, forklifts, forklifts and other power sources;
(4) Small equipment Medical equipment: electric wheelchairs, electric scooters); toys (remote control electric planes, cars, boats?);
(5) Other small appliances Miner's lamp;
(6) Starting the power supply: starting power supply for automobiles, motorcycles, tractors, diesel engines, railway diesel locomotives, electric locomotives, and buses;
(7) Fixed power supply: mainly used for communication, mobile base station, telecommunications, railway transportation, electric power, finance, power plants, computer systems as a backup power supply for protection and automatic control;
(8) Military field: military on-site electronic command system, sea (submarine, underwater robot), land (Army soldier system, machine warrior), day (unmanned aircraft), air (satellite, spacecraft) arms.
